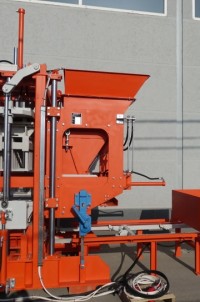

Concrete block machine SUMAB R-300 L


Block machine SUMAB R-300 L is a high quality solution for producing of the following concrete products: hollow blocks, insulated blocks, paving stones, curbstones and other.

Production capacity in 8h / 100%:
Hollow block: 4 800 pieces (20x20x40 cm)
Paving stone: 450-500 m2 (10x20x6 cm)

  • High quality equipment for
  • production all types of concrete blocks, , curbs, pavers,  and insulated blocks  according to European standards.
  • Made of components from leading manufacturers in Europe.
  • Configuration flexibility and modularity.
  • Full set of Spare parts is free!


Technical data:

Operation mode:

automatic / semiautomatic

Max product height:

330 mm

Min product height:

40 mm

Machine weight with face mix equipment and mould:

4900 kg

Installed electrical power:

15 kW

Main concrete hopper capacity:

700 l

Working pallet dimension max:

1200x550 mm

Useful area max:

1000x500 мм

Modern Controls and Visualization System

Siemens S7

Compact Hydraulic Power pack
